Atomizing Transducers
|
|

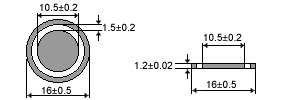

YT16-17 Ultrasonic Atomizing Transducers
- Dimensions: Φ16mm × 1.2mm
- Loop input voltage: AC24 ~ 48V
- Resonant frequency: 1680 ± 50KHZ
- Resonant impedance: ≤ 2Ω
- Static capacitance: 1200 ± 20%pf
- Spray volume: ≥ 150ml / h
- Service life: ≥ 5000h |
 |
|
|

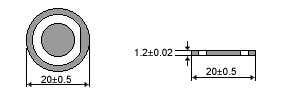

YT20-17 Ultrasonic Atomizing Transducers
- Dimensions: Φ20mm × 1.2mm
- Loop input voltage: AC24 ~ 48V
- Resonant frequency: 1680 ± 50KHZ
- Resonant impedance: ≤ 2Ω
- Static capacitance: 1700 ± 20%pf
- Spray volume: ≥ 300ml / h
- Service life: ≥ 5000h |
 |
|
|

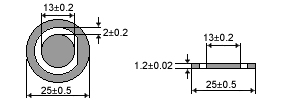

YT25-16 Ultrasonic Atomizing Transducers
- Dimensions: Φ25mm × 1.2mm
- Loop input voltage: AC38 ~ 50V
- Resonant frequency: 1680 ± 50KHZ
- Resonant impedance: ≤ 2 Ω
- Static capacitance: 1750 ± 20%pf
- Spray volume: ≥ 350ml / h
- Service life: ≥ 5000h |
 |
|
|

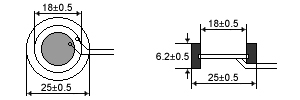

YT20-17B Ultrasonic Atomizing Transducers
- Dimensions: Φ25mm × 6.2mm
- Loop input voltage: AC24 ~ 48V
- Resonant frequency: 1680 ± 50KHZ
- Resonant impedance: ≤ 2Ω
- Static capacitance: 1700 ± 20%pf
- Spray volume: ≥ 300ml / h
- Service life: ≥ 5000h |
 |
|
|
YT25-16B Ultrasonic Atomizing Transducers
- Dimensions: Φ30mm × 6.2mm
- Loop input voltage: AC38 ~ 50V
- Resonant frequency: 1680 ± 50KHZ
- Resonant impedance: ≤ 2 Ω
- Static capacitance: 1750 ± 20%pf
- Spray volume: ≥ 350ml / h
- Service life: ≥ 5000h |
 |
|
|
